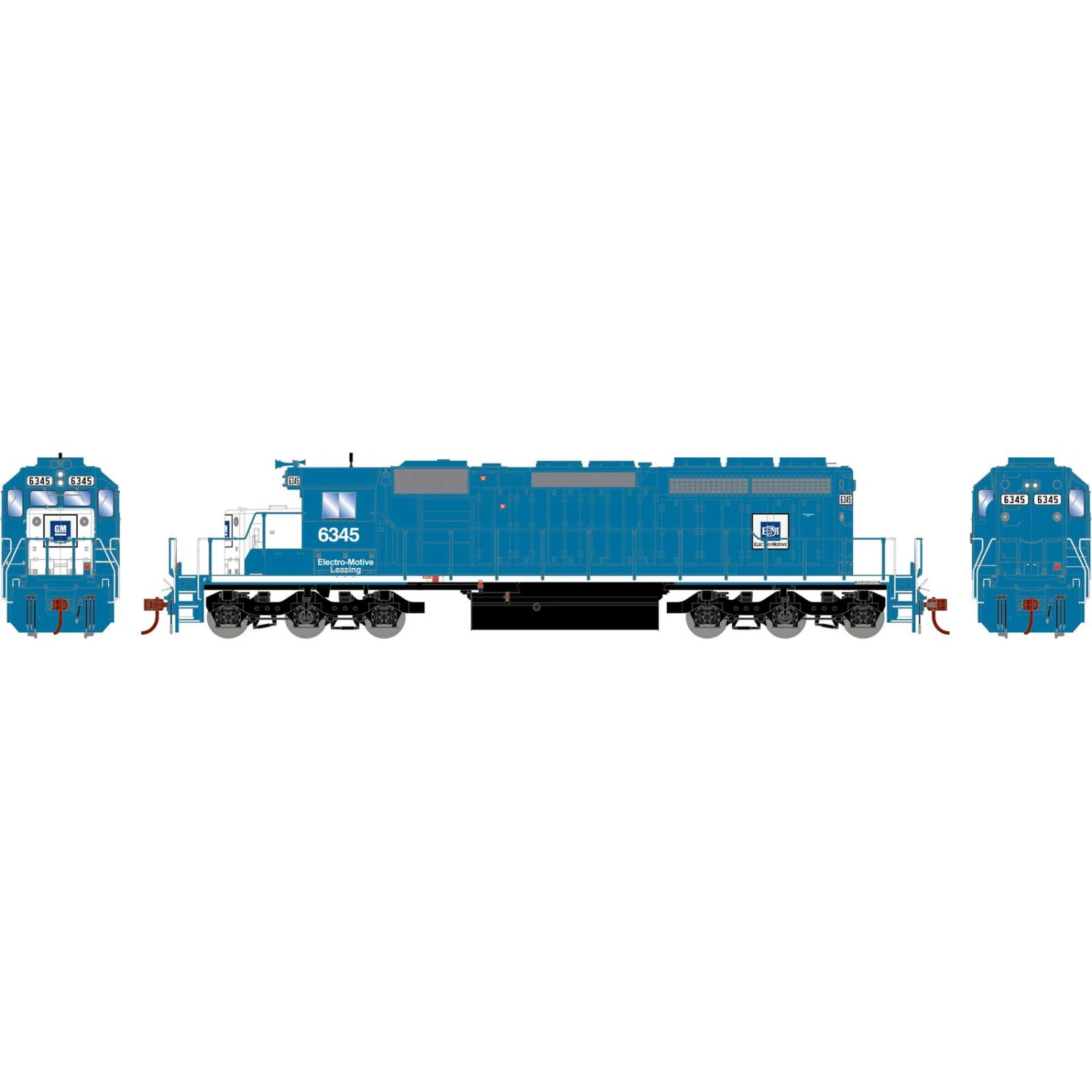

Athearn HO RTR SD40-2, EMDX #6345

EMD FEATURES:

• Ex MILW
• Short fuel tank
• Leslie 3-chime horn
• Early radiator grilles
• Two different plows (in poly bag)
• Fire cracker antenna
• Bell mounted behind the cab on the conductor’s side

Not only was EMD known for building locomotives, they also had a lease fleet of used ones. Power-short railroads could lease power on a short-term or long-term basis. Since the contracts would leave EMD to take care of maintenance, railroads could focus on other things. These brightly painted locos could be found on just about any railroad.



SD40-2 LOCOMOTIVE FEATURES:

• Fully-assembled and ready-to-run
• DCC-ready features Quick Plug™ plug-and-play technology with 21-pin NEM connector
• Scaled from prototype resources including drawings, field measurements, photographs, and more
• Accurately –painted and –printed paint schemes
• Coupler cut levers
• Flexible rubber MU hoses for durability
• Flexible rubber trainline hose
• See-through cab windows
• Fine-scale Celcon handrails for scale appearance
• Photo-etch stainless steel windshield wipers
• Wire grab irons
• Detailed fuel tank with fuel fillers, fuel gauges, & breather pipes
• Separately applied air tanks
• DCC-ready Non-sound version features 21-pin NEM DCC plug
• See-through dynamic brake and radiator fans
• Exhaust stack
• Frame mounted bell (unless noted)
• Detailed 4000 gallon fuel tank (unless different capacity is noted)
• McHenry® scale knuckle couplers – Kadee compatible
• All-wheel drive with precision gears for smooth & quiet operation
• All-wheel electrical pickup provides reliable current flow
• Wheels with RP25 contours operate on all popular brands of track
• Bi-directional LED lighting for realistic appearance
• Heavy die-cast frame for greater traction and more pulling power
• Packaging securely holds model for safe storage
• Warranty service available
• Minimum radius: 18” Recommended radius 22”



SOUND-EQUIPPED MODELS ALSO FEATURE

• Dual cube speakers
• Onboard DCC+Sound models have full-feature Tsunami2 sound decoder by SoundTraxx
• Sound units operate in both DC and DCC
• Full DCC functions available when operated in DCC mode
• Engine, horn, and bell sounds work in DC
• All functions NMRA compatible in DCC mode
• Precision slow speed control



PROTOTYPE SPECIFIC INFORMATION

The SD40-2 was introduced in January 1972 as part of EMD’s Dash 2 series, responding to competing products from GE and ALCO. Reliability and versatility of the 3,000-horsepower SD40-2 made it the best-selling model in EMD’s history and the standard of the industry for several decades after its introduction. The SD40-2 was an improvement over the SD40, with modular electronic control systems like those of the experimental SD45X and DDA40X. The last SD40-2 delivered to a United States railroad was built in July 1984, with production continuing for railroads in Canada until 1988.

Product Specifications

Scale	HO
Sub Brand	ATHEARN
DCC	Ready/21-Pin NEM
Axles	6
Era	1971-1990, 1991-2009
Prototype Manufacturer	EMD
Lighted	LED
Sound	Ready
Reporting Mark	EMDX
